Manufacturers And Exporters Of Vacuum Pump

Oil Sealed, Rotary High Vacuum Pumps

These are of oil-immersed, rotary vane type pumps. The rotor, with two spring loaded vanes, is mounted eccentric in the stator body. As the rotor, rotates the vanes sweep the crescent shape air space twice in each revolution. There is in-built non-return valve which prevents back flow of air.

Manufactured from graded material, all moving parts are precisely machined, ground and assembled with close tolerances. This results in increased efficiency and long trouble free operating life.

Applications

Distillation

Dehydration and filtration processes.

Exhausting Electric Tubes, GLS Lamps, Mercury Vapor Lamps and Tubes.

Vacuum metaiiurgy, Vacuum Sublimation, Vacuum impregnation, Thin film Coating.

Refrigerator and Air-conditioner servicing.

Freeze drying of Foods.

Model No. No. of STAGES FREE AIR DISPLACEMENT ULTIMATE VACUUM DRIVE MOTOR REQD. APPROX OIL FILLING Liters
Lt./Min. C.F.M mm. of Hg. H.P.
JP/SO-50 1 50 1.8 0.05 0.25 2
2 50 1.8 0.005 0.25 2
JP/SO-100 1 100 3.5 0.05 0.25 2
2 100 3.5 0.005 0.5 3
JP/SO-150 1 150 5.3 0.05 0.5 3
2 150 5.3 0.005 1 4
JP/SO-300 1 300 10.6 0.05 1 6
2 300 10.6 0.005 1.5 8
JP/SO-500 1 500 17.6 0.05 1.5 7
2 500 17.6 0.005 2 8
JP/SO-750 1 750 26.5 0.05 2 8
2 750 26.5 0.005 3 10
JP/SO-1000 1 1000 35.3 0.05 2 15
2 1000 35.3 0.005 3 20
JP/SO-1500 1 1500 53 0.05 3 20
2 1500 53 0.005 5 25
JP/SO-2000 1 2000 70.6 0.05 3 25
2 2000 70.6 0.005 5 30
JP/SO-3000 1 3000 106 0.05 5 35
2 3000 106 0.005 7.5 40
JP/SO-5000 1 5000 176.5 0.05 7.5 40
2 5000 176.5 0.005 10 45
JP/SO-7500 1 7500 265 0.05 10 60
2 7500 265 0.005 15 65
JP/SO-10000 1 10000 353 0.05 15 65
2 10000 353 0.005 20 75

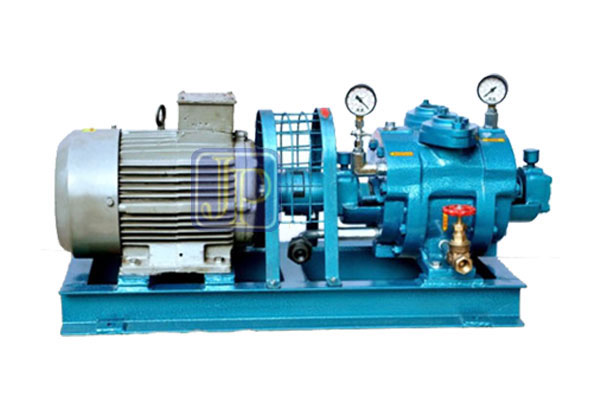

Water Ring Vacuum Pumps

Water Ring Vacuum Pumps

Jakim Pumps manufacturing and exporting Vacuum Pump, which is a device that takes out gas molecules from a sealed volume in order to leave behind a partial vacuum. Jakim Pumps offering different types of vacuum pumps to customers with different uses.

Manufactured from graded material, all moving parts are precisely machined, ground and assembled with close tolerances. This results in increased efficiency and long trouble free operating life.

Applications

The applications for liquid ring vacuum pumps are diversified and include drying, Condensing, Distilling, Impregnating, sterilizing. Evacuating, cooking, evaporating, draining, conveying, venting and sucking, liquid-ring vacuum pumps are being used in the chemical, petrochemical, Pharmaceutical, pulp and paper and food industries.

Some Specific Applications for Vacuum Pump Are:

Draining paper Webs.

Saturating insulation materials, wood and textiles.

Evacuating condensers and piping.

Priming pumps

Evaporating acids, blood and milk.

Drying resins, paints and chemicals.

Conveying Wheat, sugar and chemicals products.

Lifting and transporting wood and plates.

Wide Choice Of Materials

Standard materials of construction are cast iron with semi steel rotor. Shaft material is stainless steel for model JP/SW-30 to JP/SW-70, larger sizes are carbon steel with brass of stainless steel shaft sleeves for wetted parts.

Alternate combination materials are available for special applications:

Operating Principle Of Vacuum Pump

The working parts of the JAKIM - Vacuum Pumps consists of a multi-vane impeller mounted eccentrically in a round casing which is partly filled with liquid (usually water). As the impeller rotate the liquid is thrown by centrifugal force to from a liquid ring which is concentric with the periphery of the casing. Due to the eccentric position of the impeller relative to the casing and liquid ring, the spaces between the impeller vanes fill with liquid during rotation and any air or gas trapped in the impeller space or cell is compressed and discharged from the casing through the outlet part leaving the cell available to receive air or gas as it is presented to the inlet port of the casing. In addition to being the compressing medium the liquid-ring performs three other important functions. It absorbs the heat generated by compression and friction. It absorbs any liquid slugs or vapor entering with the gas stream. It will also absorb and wash out contaminants entrained in the gas.

Model No.

SUCTION

ELE. MOTOR

WATER
Lt/Min.

SUCTION

WATER
CONN

M3/Hr C.F.M H.P.

R.P.M

K

N.B

JP/SO-30 50 30 3 2880 7 25 1 1/2
JP/SO-50 80 50 5 2880 10 30 1.1/4 1/2
JP/SO-70 120 75 7.5 2880 14 36 1.1/2 1/2
JP/SO-75 160 95 7.5 1440 15 50 2 1/2
JP/SO-100 220 130 10 1440 20 60 2.1/2 3/4
JP/SO-150 330 195 15 1440 30 80 3 3/4
JP/SO-200 440 260 20 1440 40 80 3 3/4
JP/SO-300 720 410 30 980 60 125 5 3/4
JP/SO-350 845 490 35 980 80 125 5 3/4
JP/SO-400 1080 650 40 980 100 125 5 3/4
